Voice integration media intent

For voice input to search Media, there will be an Intent send out with the list of search result, HMI could ignore to show current played one, or customize UI display with current search result by this Intent.

Note

In current version 2.49.1, Media provider switch through voice command is not ready for test yet. Support command with provider specific as "Spotify", or just general command without provider, which will control current Media provider.

Ask for Login when Media app not signed in which affect usage

• Action: Intent.ACTION_VIEW
• Bundle Fields:

Key	Value	ValueType
provider	"spotify"	default means current provider

• Example Code that voice send out for Media sign in:

Kotlin

        val provider = "spotify"
        val intentUrl = Uri.parse("telenav://app.media/login?api=1&source=voice&provider="+provider)
        val mediaIntent = Intent(Intent.ACTION_VIEW, intentUrl)
        mediaIntent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK)
        startActivity(mediaIntent)

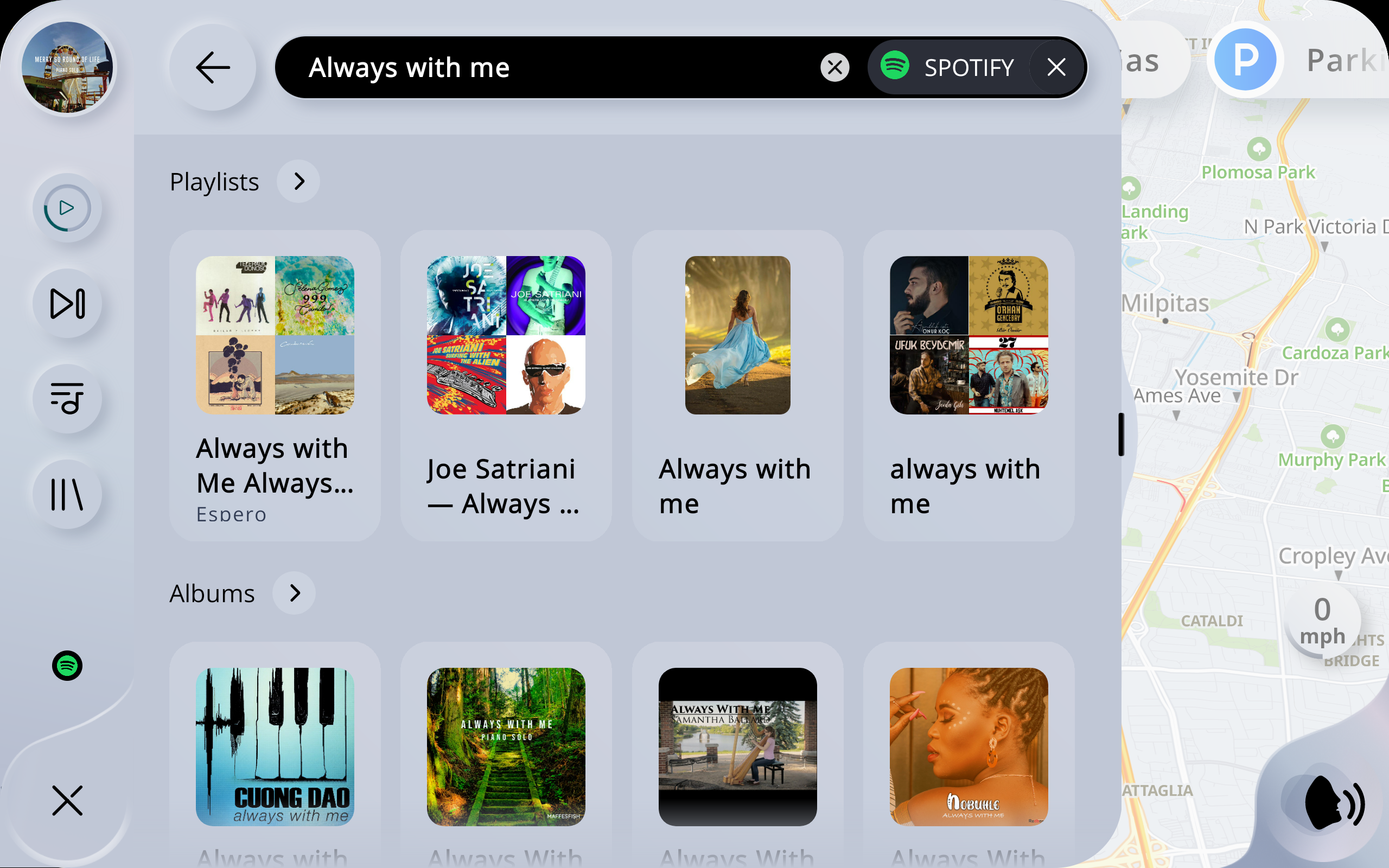

Post Media search result from Voice to Media HMI

• Action: Intent.ACTION_VIEW
• Bundle Fields:

Key	Value	ValueType
provider	"spotify"	default means current provider
search_result	see MediaItem Data Model	Array of MediaItem

• Example Code that voice send out for Media results display:

Kotlin

        val provider = "spotify"

        val list = ... (MediaItem ArrayList)
        val intentUrl = Uri.parse("telenav://app.media/search/result?api=1&source=voice&provider=${provider}")
        val mediaIntent = Intent(Intent.ACTION_VIEW, intentUrl)
        mediaIntent.putExtra("search_result", list)
        mediaIntent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK)
        appContext.startActivity(mediaIntent)
