Marketplace components

Marketplace Home

CommerceHomeFragment is the fragment displayed by default when opening Marketplace Home. CommerceHomeFragment offers the following capabilities:

Switch between Marketplace Home and Order History screens.
Displays the shopping cart badge number when there are items added in the food shopping cart and the order is not completed.
Request the food brands available and displays them to the user.
Performs search for stores when clicking on a certain brand.

Switch between Marketplace Home and Order History

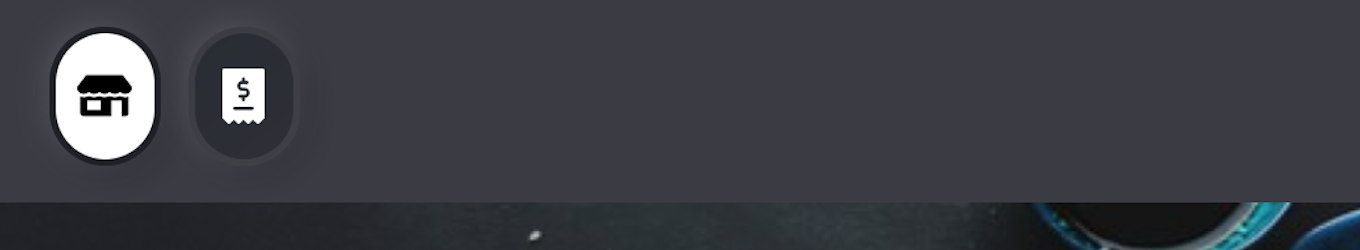

CommerceHomeFragment offers the possibility to switch tabs between Marketplace Home screen and Order History screen through the top-left buttons in the image below:

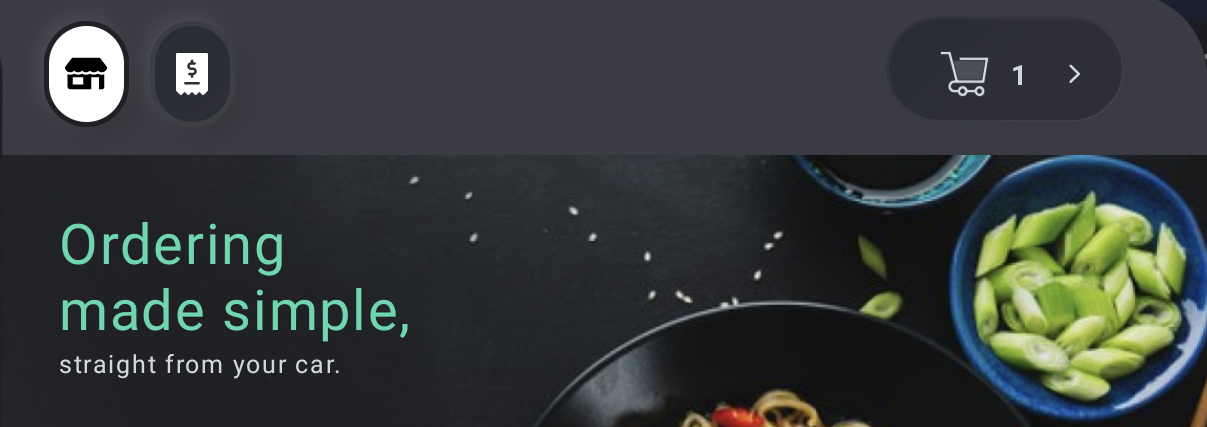

Displays the shopping cart badge number

CommerceHomeFragment displays a shopping cart badge number containing the number of items in the food shopping cart for an order that has not been placed yet, but started.

Note

In order to have the full functionality, the Voice integration is mandatory.

Request the food brands

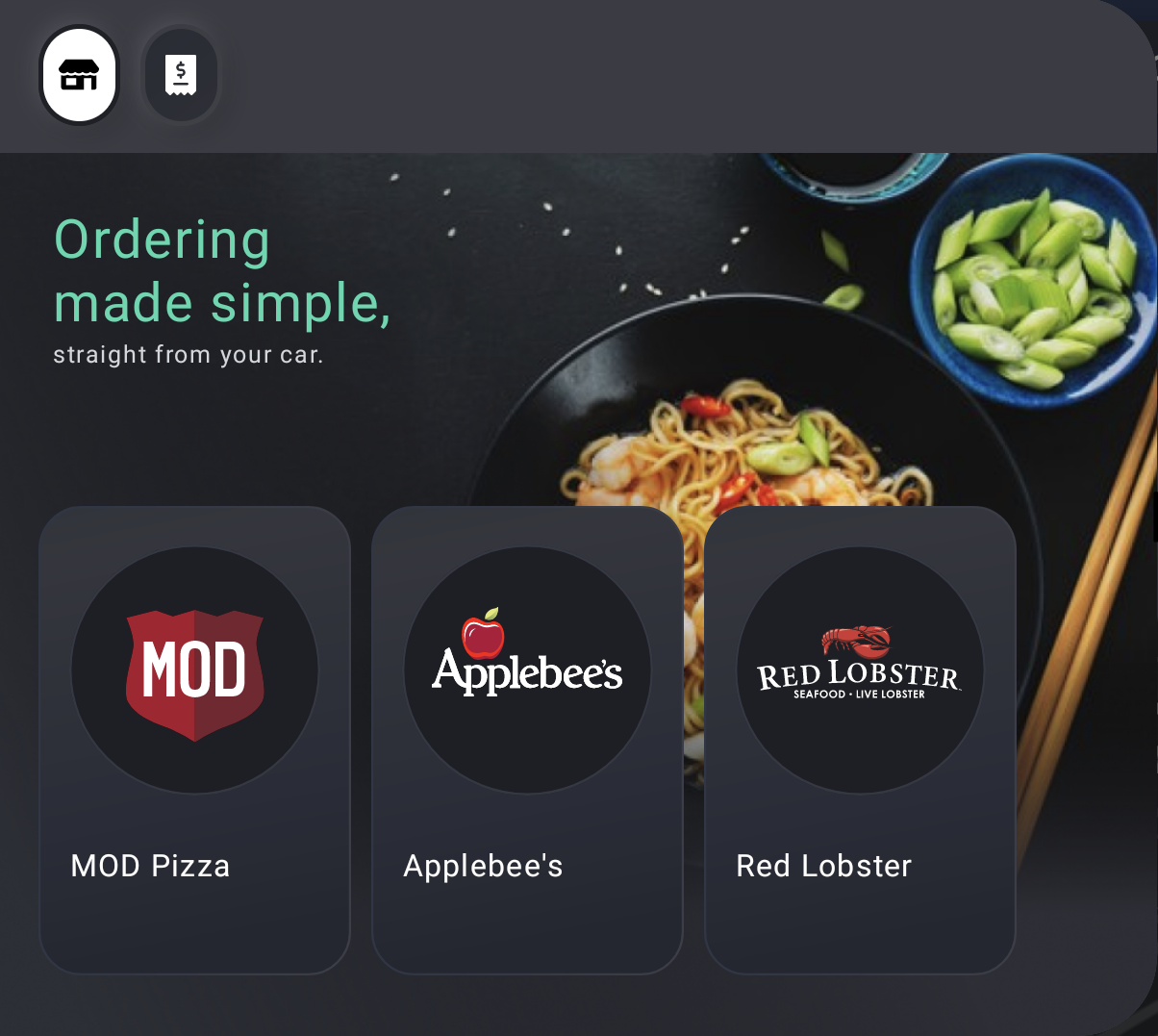

CommerceHomeFragment displays the available food brands inside MarketplaceFragment. The food brands information is read from SharedPreferences so that they can be displayed instantly on the UI, but this data is constantly updated with the server data.

When clicking on a food brand picture logo, a search for available stores is performed. Depending of the navigation state, the search is performed along the navigation route(when in active navigation) or based on user's location(when in free drive).

The navigation state is retrieved from the ContextService and the corresponding request/response are defined below:

Navigation status request intent

Kotlin

val assistantIntent =Intent("com.telenav.assistant.GET_DOMAIN_CONTEXT_ACTION")
assistantIntent.putExtra("domain","UDE")
assistantIntent.putExtra("request_id",RandomID())
assistantIntent.putExtra("source","app")

Navigation status response intent

Kotlin

val responseIntent = Intent("com.telenav.assistant.GET_DOMAIN_CONTEXT_ACTION")
responseIntent.putExtra("domain", "UDE")
responseIntent.putExtra("context", "NavContextPropertiesModel")

where Data class NavContextPropertiesModel contains information about the context properties.

Kotlin

data class NavContextPropertiesModel(
    /**
     * The CVP location
     */
    @SerializedName("location")
    val location: ContextServiceLocation? = null,
    /**
     * The type of driving: free or navigation
     */
    @SerializedName("drive_mode")
    val driveMode: DriveMode? = null,
    /**
     * Estimated Time of Arrival in seconds
     */
    @SerializedName("eta")
    val eta: Int? = null,
    /**
     * List of route points, if under navigation
     */
    @SerializedName("route_list")
    val routeList: List<GeoLocation>? = null,
    /**
     * List of destinations, if under navigation
     */
    @SerializedName("destination_list")
    val destinationList: List<FoodStore>? = null
) : Serializable {

    enum class DriveMode {
        @SerializedName("free")
        FREE,
        @SerializedName("navigation")
        NAVIGATION
    }
}

/**
 * Data class which contains information about the location provided by Context Service
 */
data class ContextServiceLocation(

    /**
     * The latitude of the location
     */
    @SerializedName(value = "latitudeInDegrees")
    val latitude: Double = 0.0,

    /**
     * The longitude of the location
     */
    @SerializedName(value = "longitudeInDegrees")
    val longitude: Double = 0.0
) : Serializable

data class GeoLocation(

    /**
     * The latitude of the location
     */
    @SerializedName(value = "lat")
    val latitude: Double = 0.0,

    /**
     * The longitude of the location
     */
    @SerializedName(value = "lon")
    val longitude: Double = 0.0
) : Serializable

Once the Search results are available, Commerce sends an intent containing the search data:

Search results intent

Kotlin

val showFoodResultsIntent =Intent("telenav://app.maps/nav/search/show")
showFoodResultsIntent.putExtra("api",1 )
showFoodResultsIntent.putExtra("source","app")
showFoodResultsIntent.putExtra("request_id",RandomID())
showFoodResultsIntent.putExtra("original_domain","ICC_FOOD")
showFoodResultsIntent.putExtra("enable_sorting",true)
showFoodResultsIntent.putExtra("enable_touch",true)
showFoodResultsIntent.putExtra("radius",50)

val geo = URLEncoder.encode("geo:lat,lon","utf-8")
showFoodResultsIntent.putExtra("location", geo)
showFoodResultsIntent.putExtra("query", "MOD Pizza")
showFoodResultsIntent.putExtra("brand", Gson().toJson(brandData))
showFoodResultsIntent.putExtra("search_result", Gson().toJson(brandResultsData))

Note

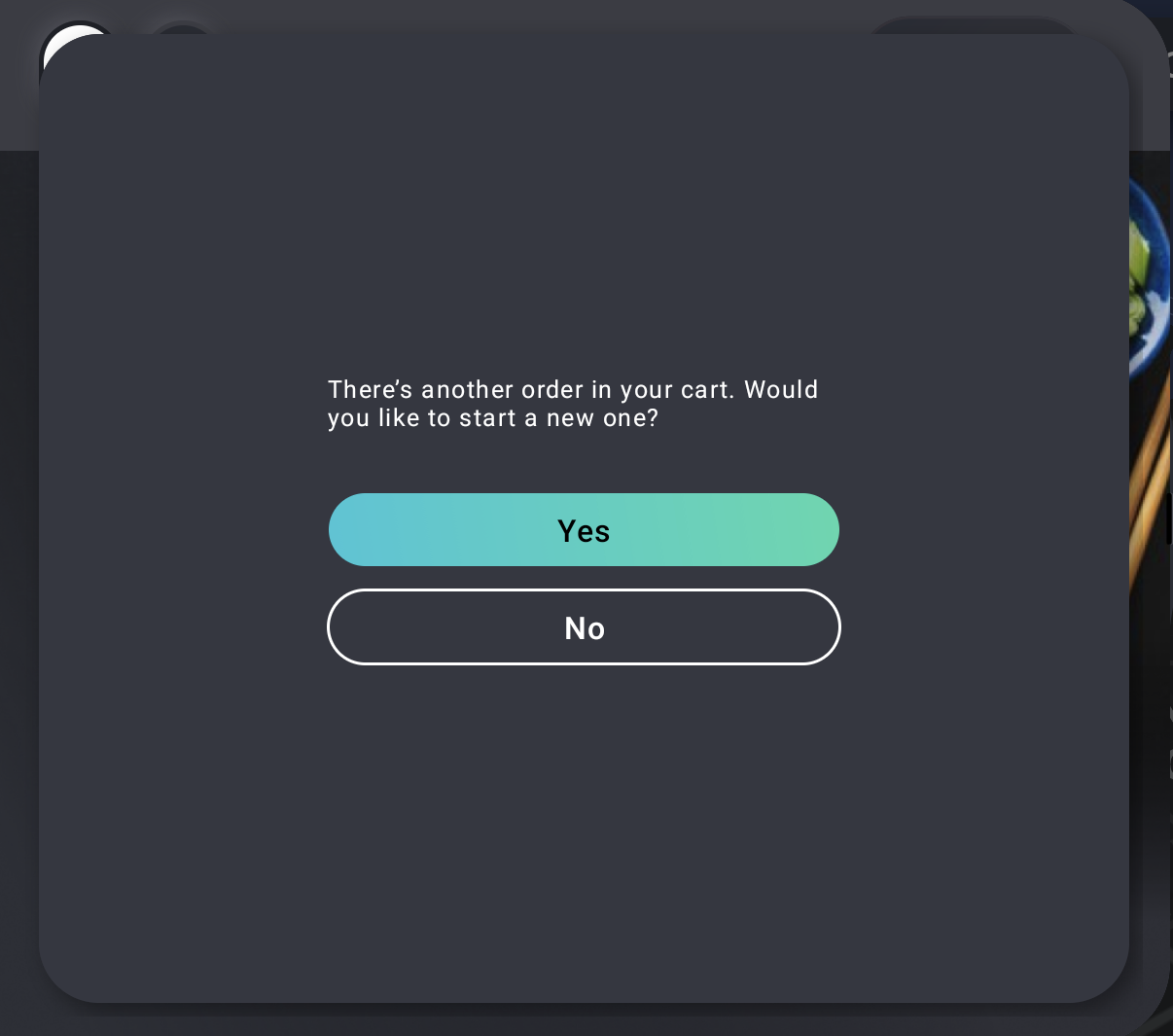

In case there are some item in the food shopping cart when a brand is clicked, the user has the possibility to start a new order or continue the order that is pending.

Order history

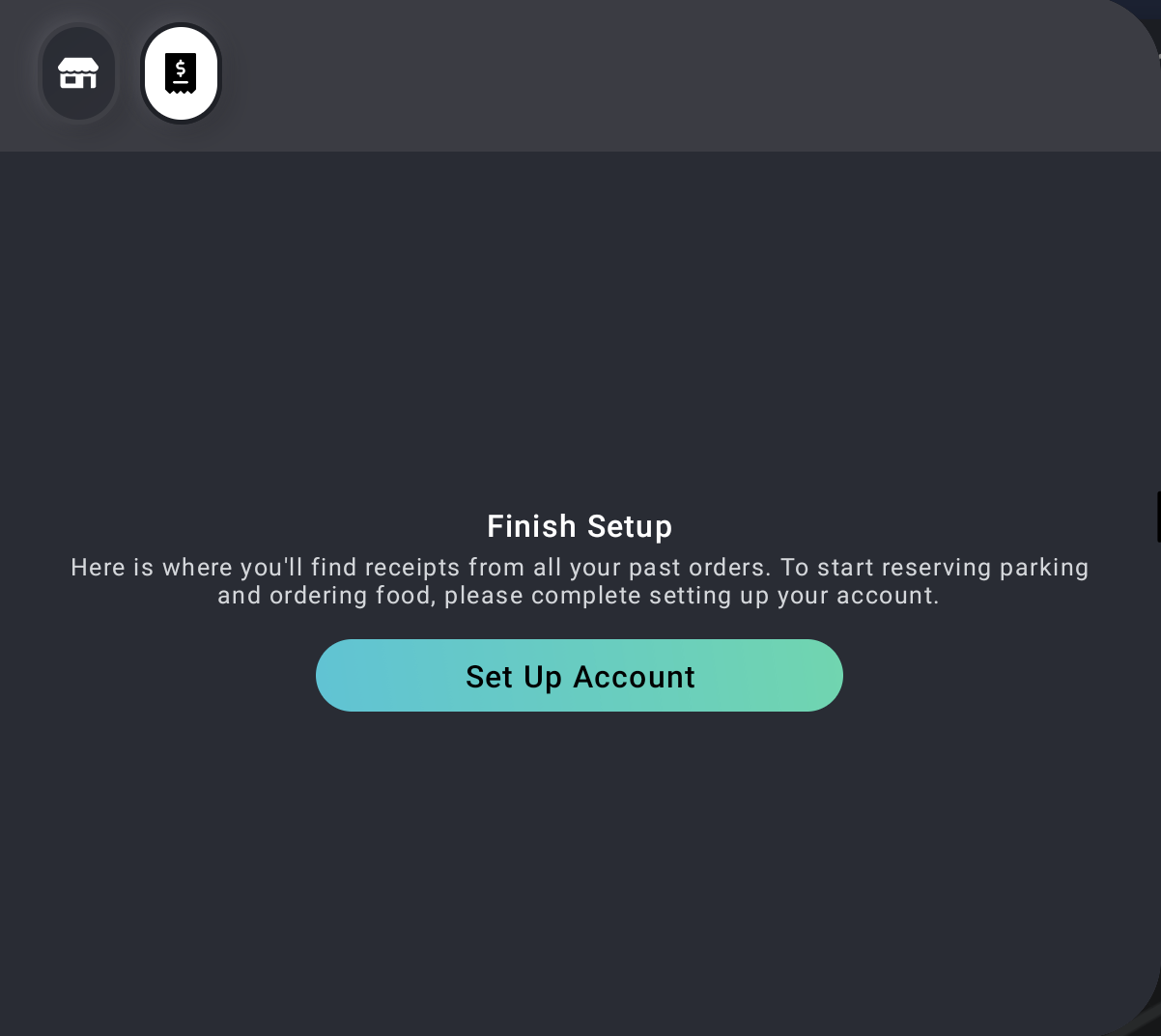

OrderHistoryFragment displays the order history of the logged in user. In case no user is authenticated, an information message is displayed.

Each order history entry provides the basic information about the order, as follows:

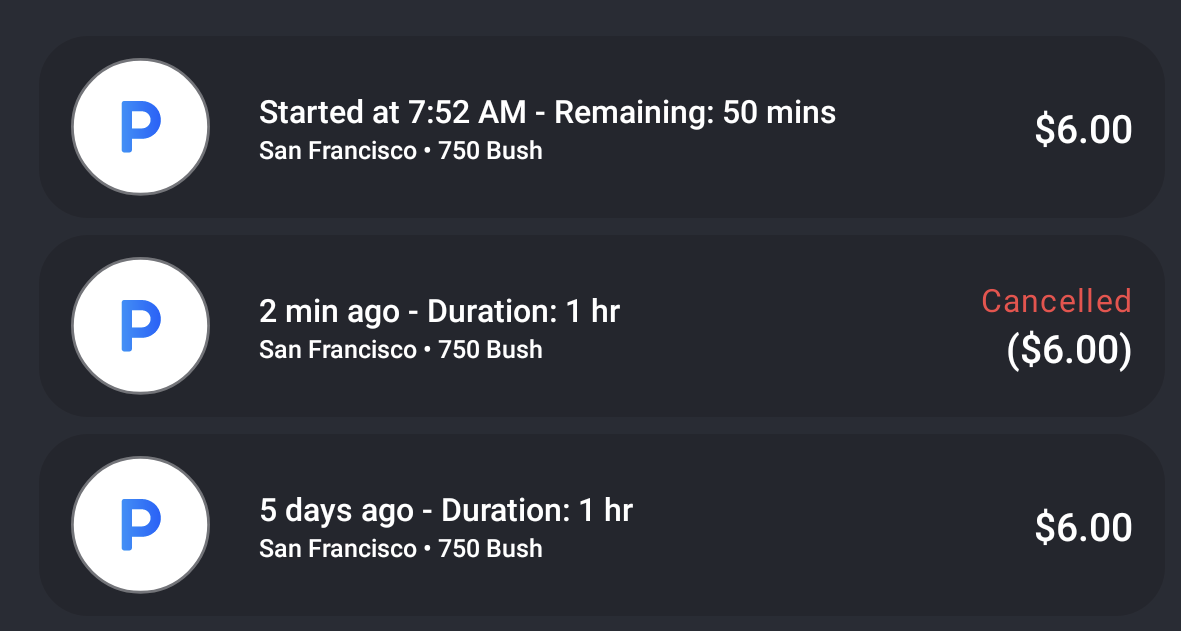

Parking order

The Parking order includes the following:

parking icon
start date and duration
the "Canceled" label when having a canceled order
the price of the parking reservation

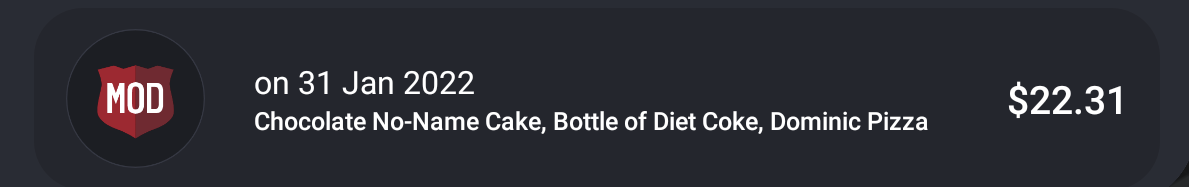

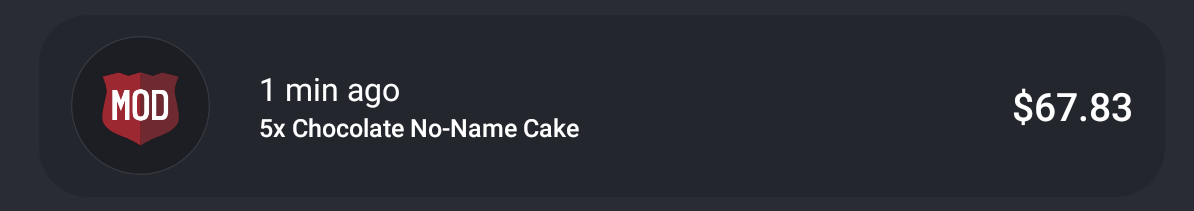

Food order

The Food order includes the following:

food brand icon
creation date or time
items in the shopping cart
the quantity for multiple items
total price of the order

Order details

Parking reservation details

ParkingOrderDetailsFragment displays the detailed information about a parking reservation. There are 4 types of parking reservation states. Depending on each state, the displayed information is slightly different.

Past reservations displays the following information:

creation date
payment information(paid amount, card type and last 4 digits of the card)
started at
duration
parking address
drive/Add a stop button

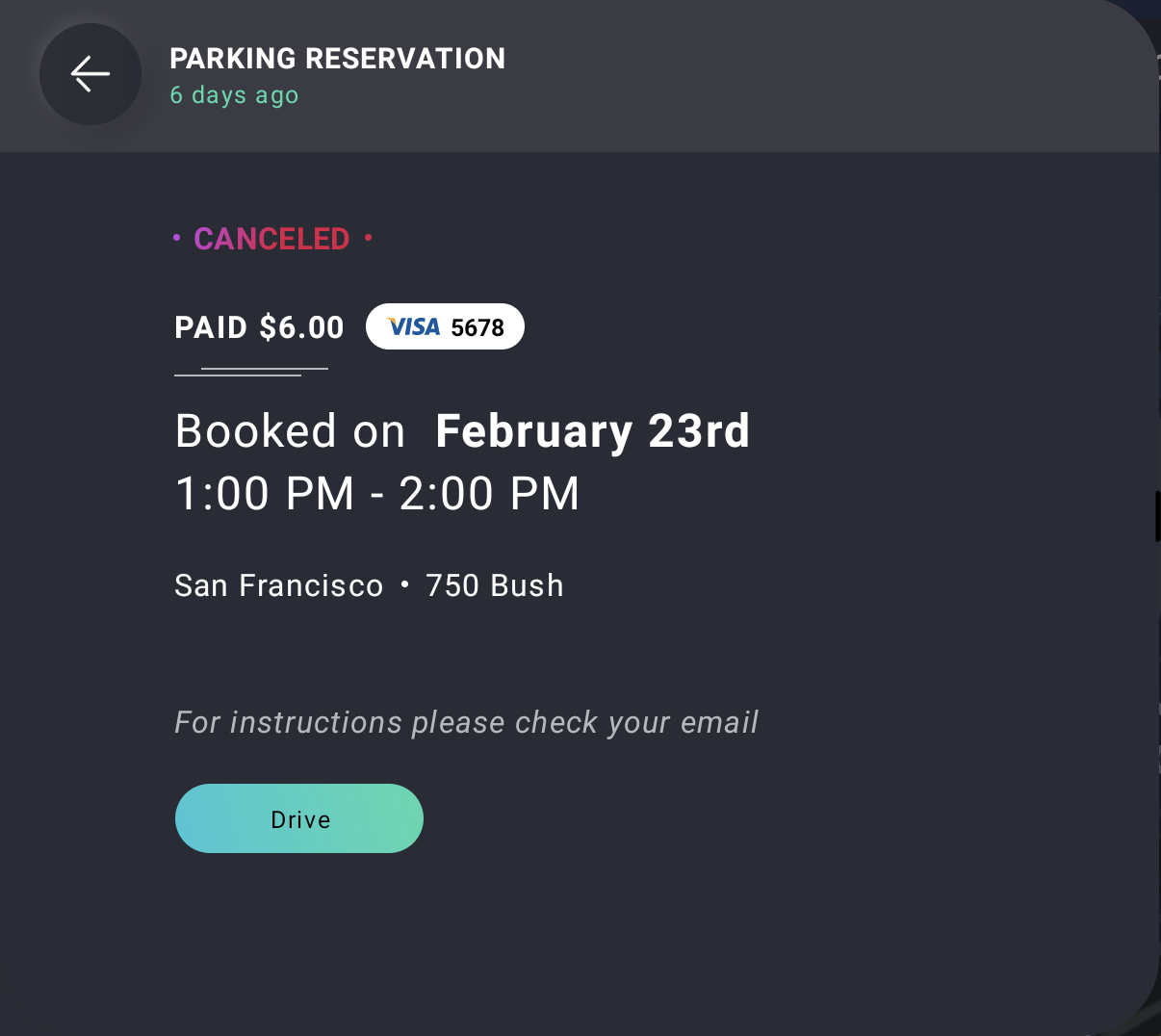

Canceled reservations displays the following information:

creation date
payment information(paid amount, card type and last 4 digits of the card)
booked on
booking interval
parking address
drive/add a stop button

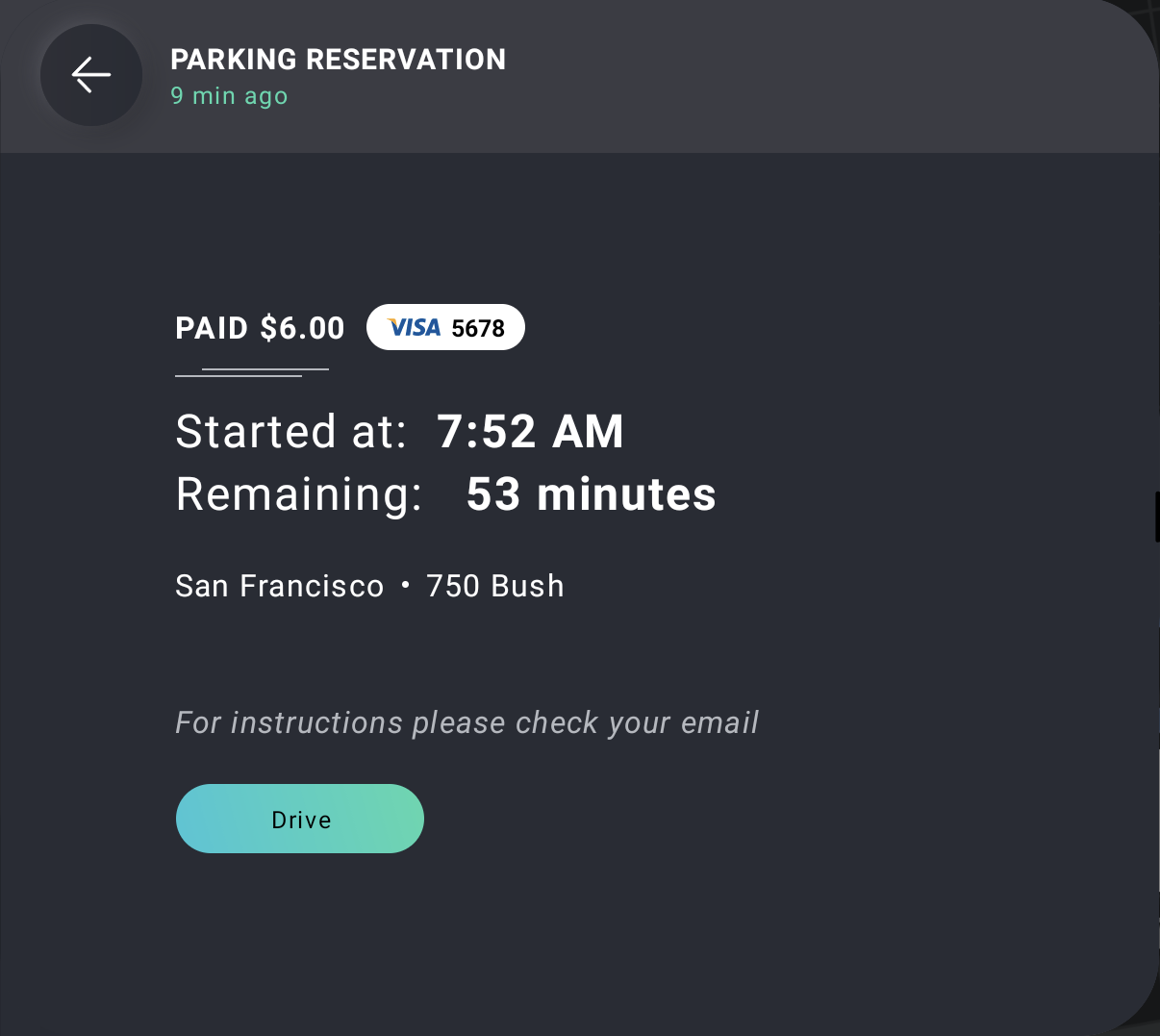

In progress reservations displays the following information:

creation date
payment information(paid amount, card type and last 4 digits of the card)
started at
remaining
parking address
drive/add a stop button

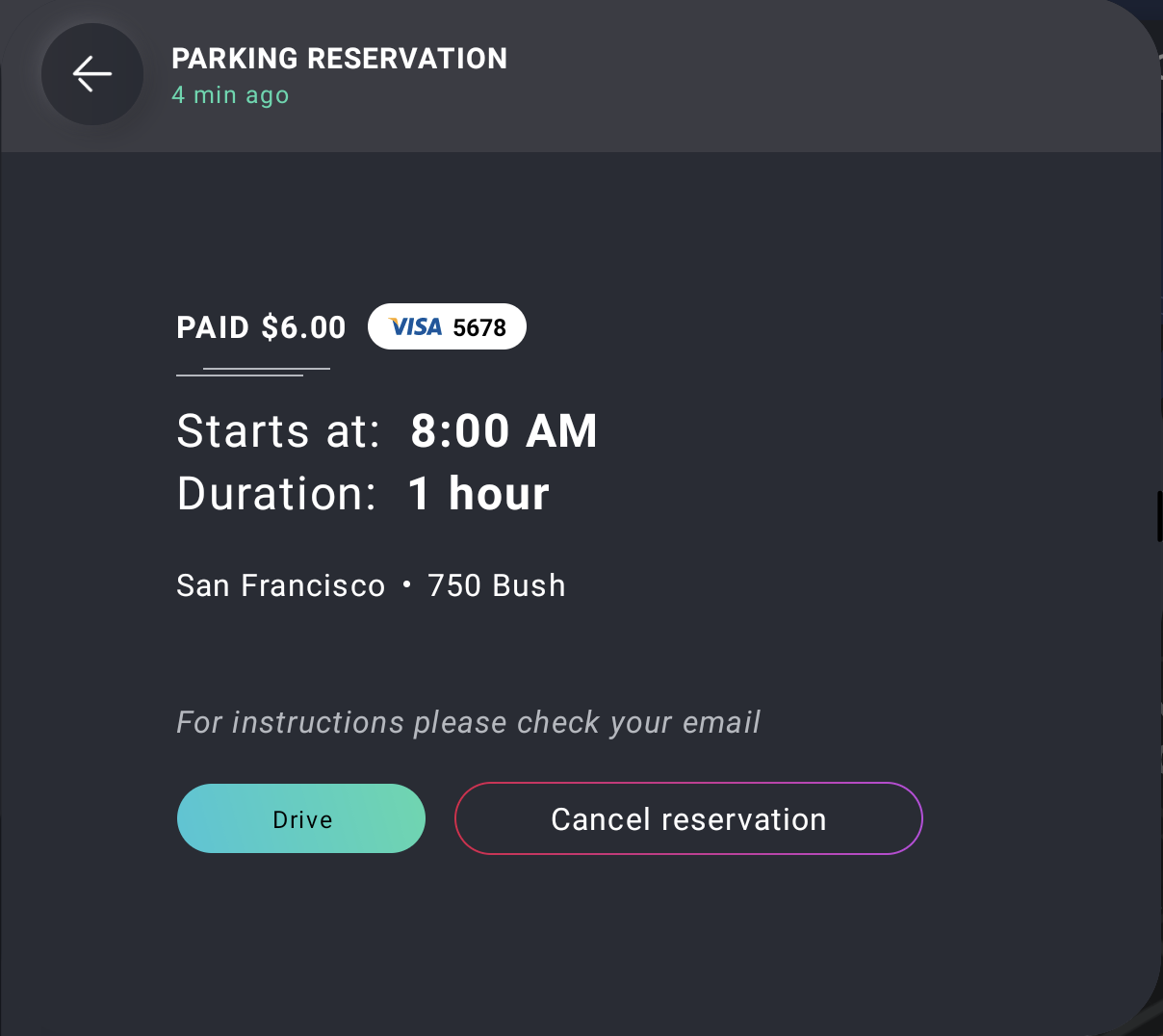

Upcoming reservations displays the following information:

creation date
payment information(paid amount, card type and last 4 digits of the card)
starts at
duration
parking address
drive/add a stop button
cancel reservation button

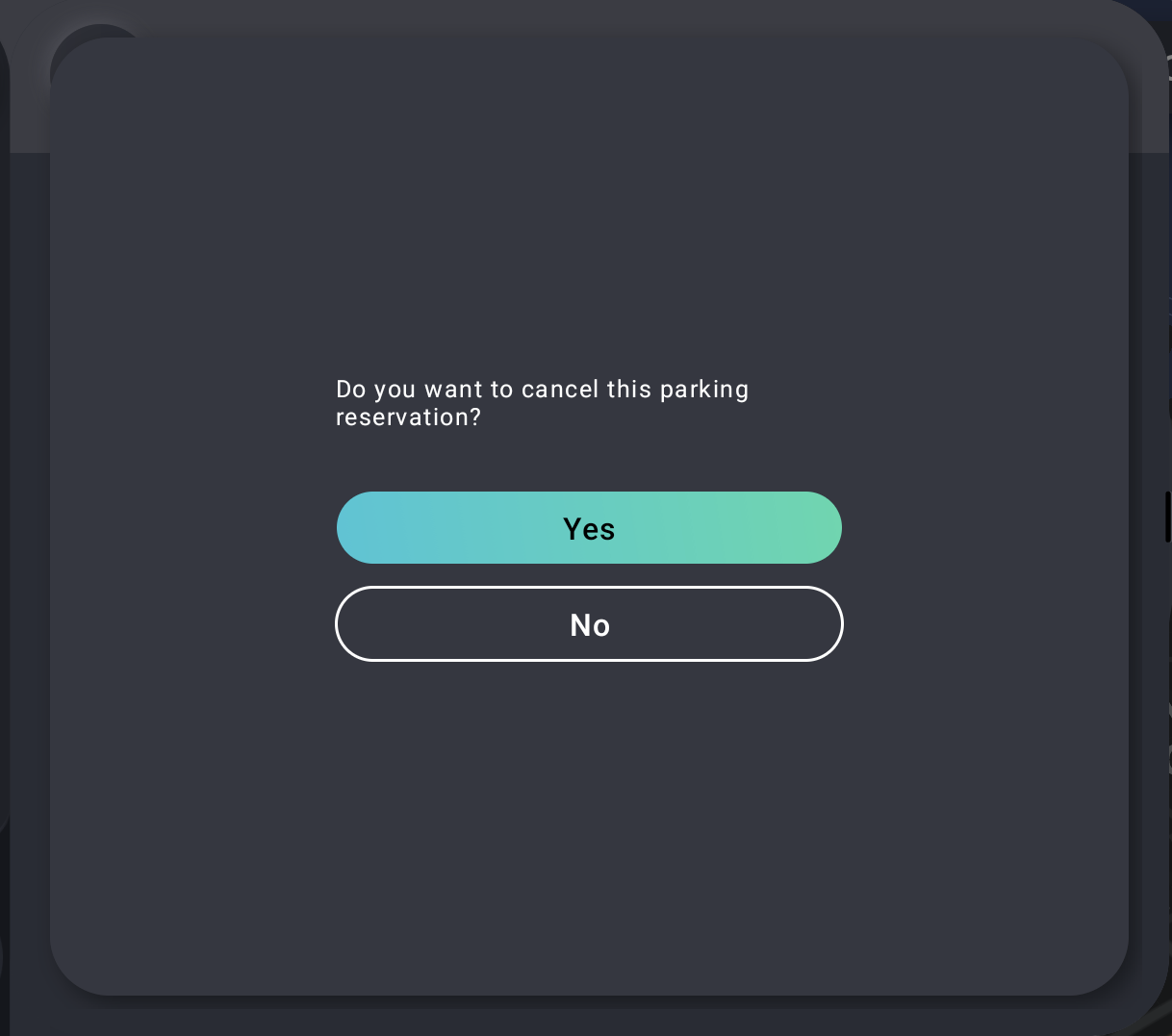

Any upcoming reservation will display a button offering the possibility to be canceled, up to one minute before it starts. If the user selects the Cancel reservation button, a confirmation popup is displayed so the user can confirm the cancellation intention or reject it.

The Drive/Add a stop button is used to navigate to the restaurant's address, when the user is in free drive or added as a stop to the current navigation if the user has an active navigation on. In order to obtain the navigation status, a request intent is sent to ContextService(its documentation can be found at Request the food brands).

Food order details

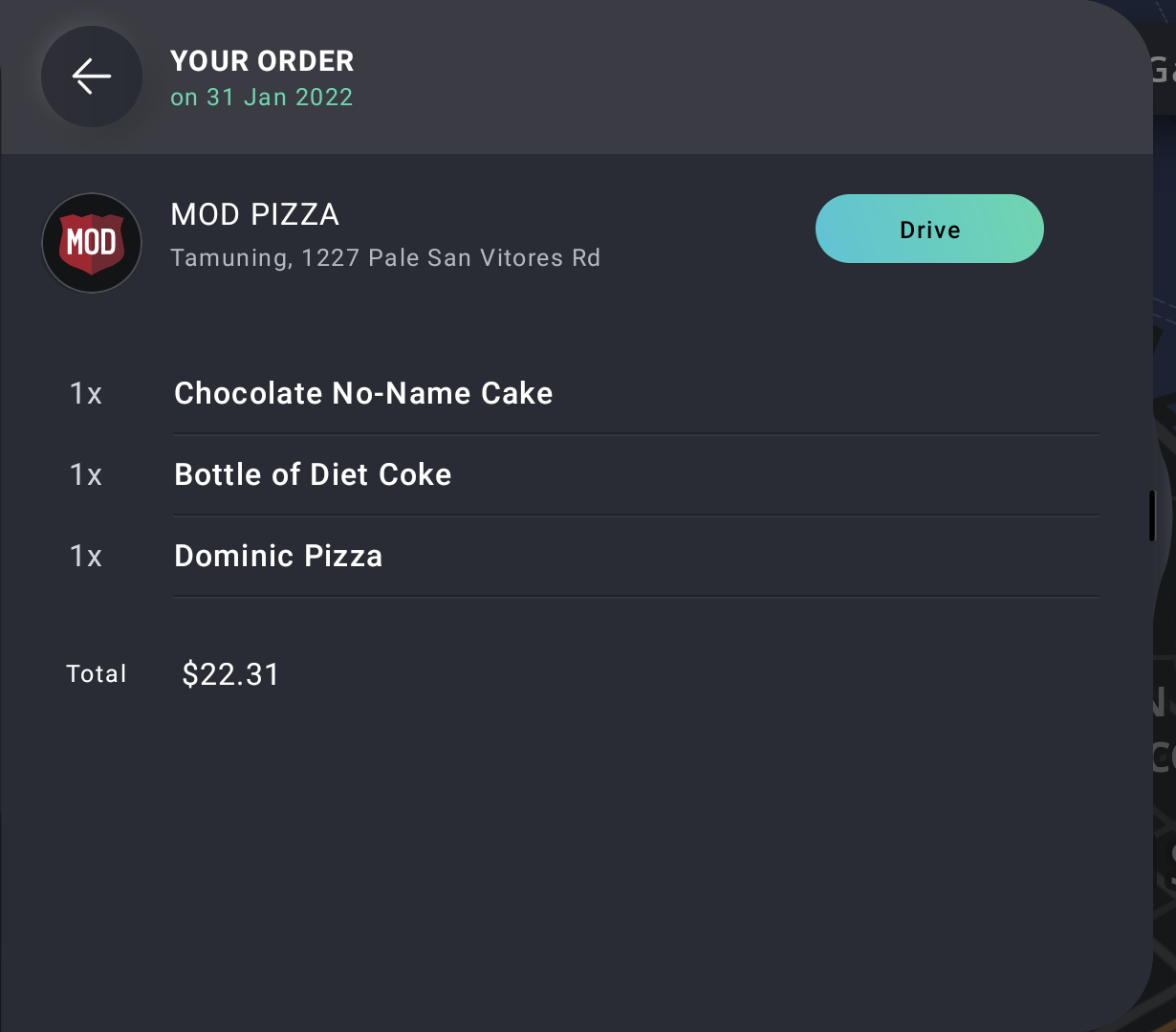

FoodOrderDetailsFragment displays the detailed information about a food order:

date and time of the order
restaurant information: logo, name and address
the list of items and their quantities
total price
drive/add a stop button

The Drive/Add a stop button is used to navigate to the restaurant's address, when the user is in free drive or added as a stop to the current navigation if the user has an active navigation on. In order to obtain the navigation status, an request intent is sent to ContextService(its documentation can be found at Request the food brands).
